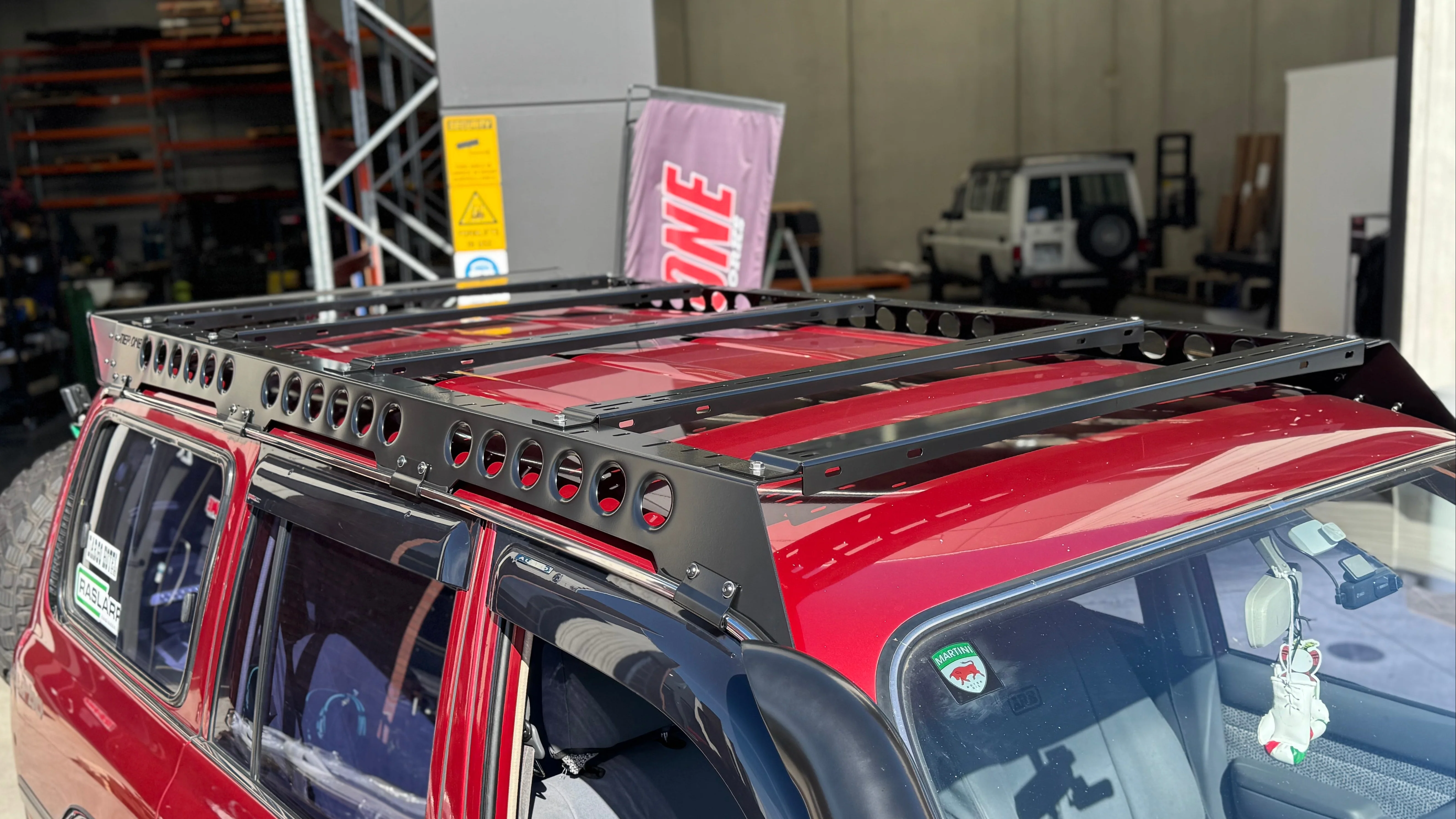

Low Profile Light Duty Crossbars (LPLD)

We’re excited to announce that our Low-Profile Light-Duty Cross Bars LPLD are now supplied standard in premium 304 stainless steel!

Finished in the same satin black powder-coat as our roof-rack rails, these bars offer a higher-end, longer-lasting version of our proven design, while maintaining the clean, low-profile Tier One look you know and trust.

Designed with strength, versatility, and modularity in mind, Tier One Cross Bars give you complete freedom to configure your setup.

Each bar is: Fully adjustable, completely interchangeable and mountable in any rail position. This allows you to easily tailor your rack for touring, trade use, or everyday driving.

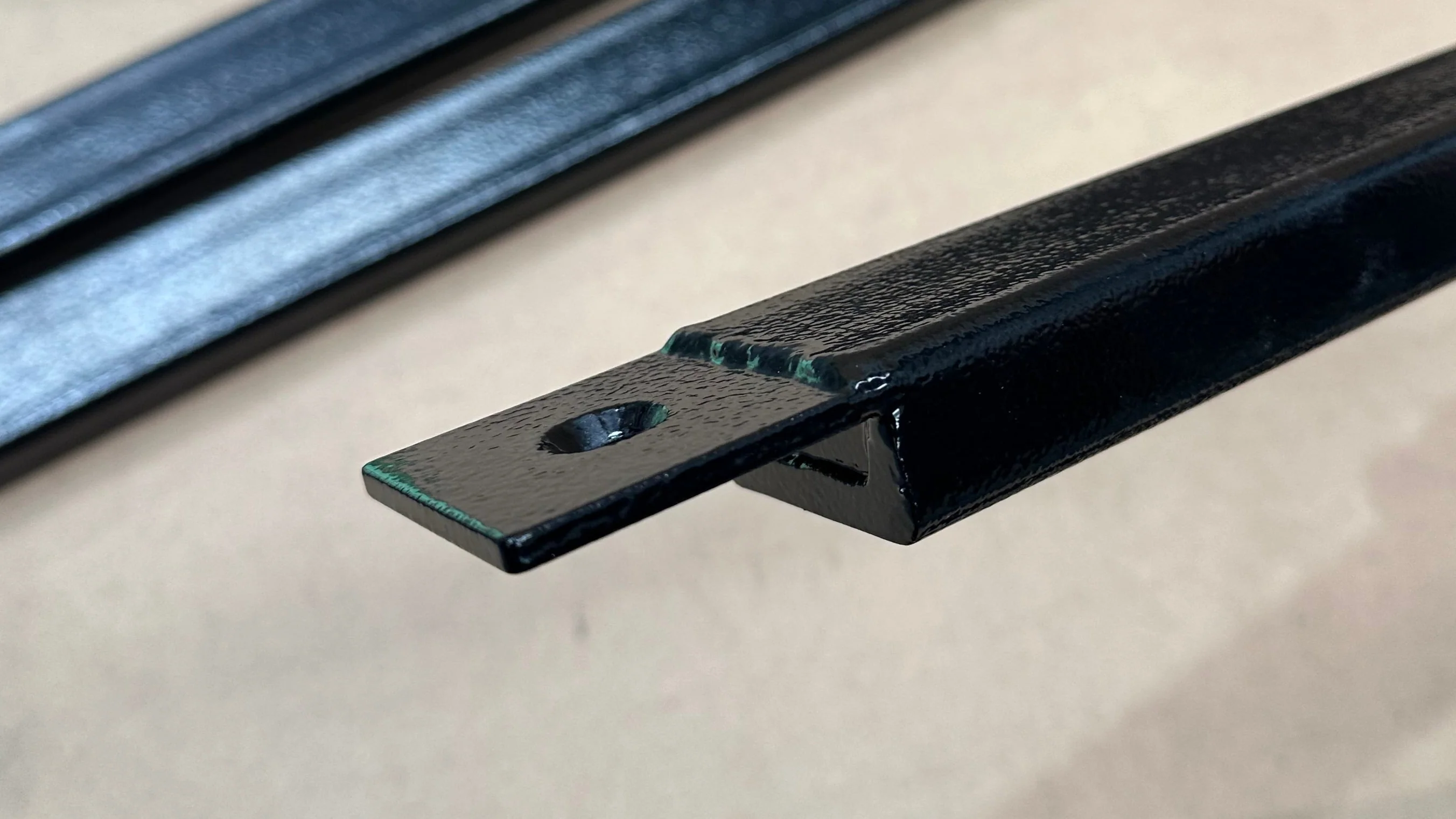

Lightweight and slim, these bars are ideal for direct rooftop-tent mounting or lighter accessories. Each bar is reinforced with welded supports underneath for added strength, outperforming comparable low-profile alternatives.

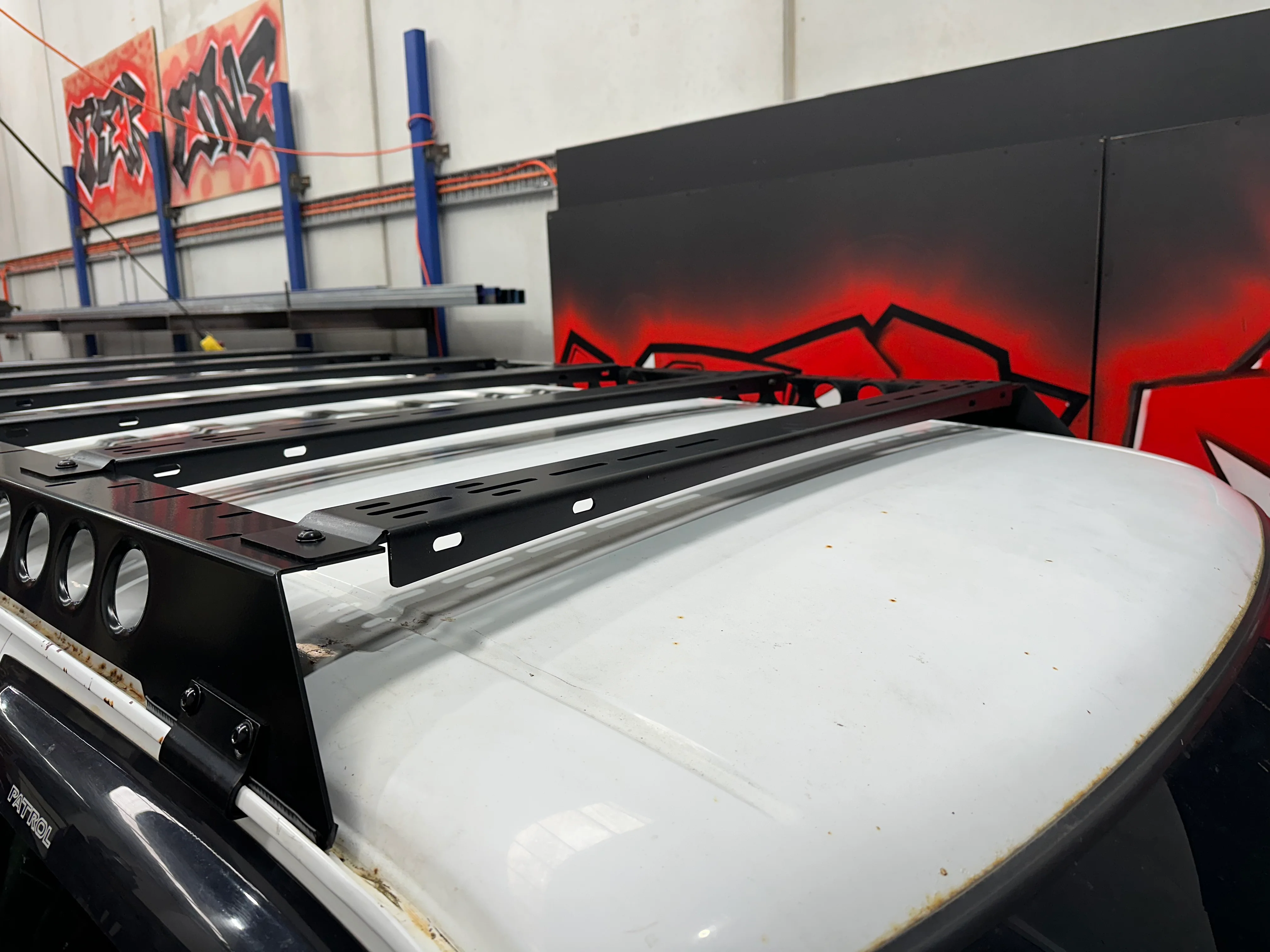

A gentle curve follows the roofline, delivering the lowest and cleanest fit possible.

Recommended Setups

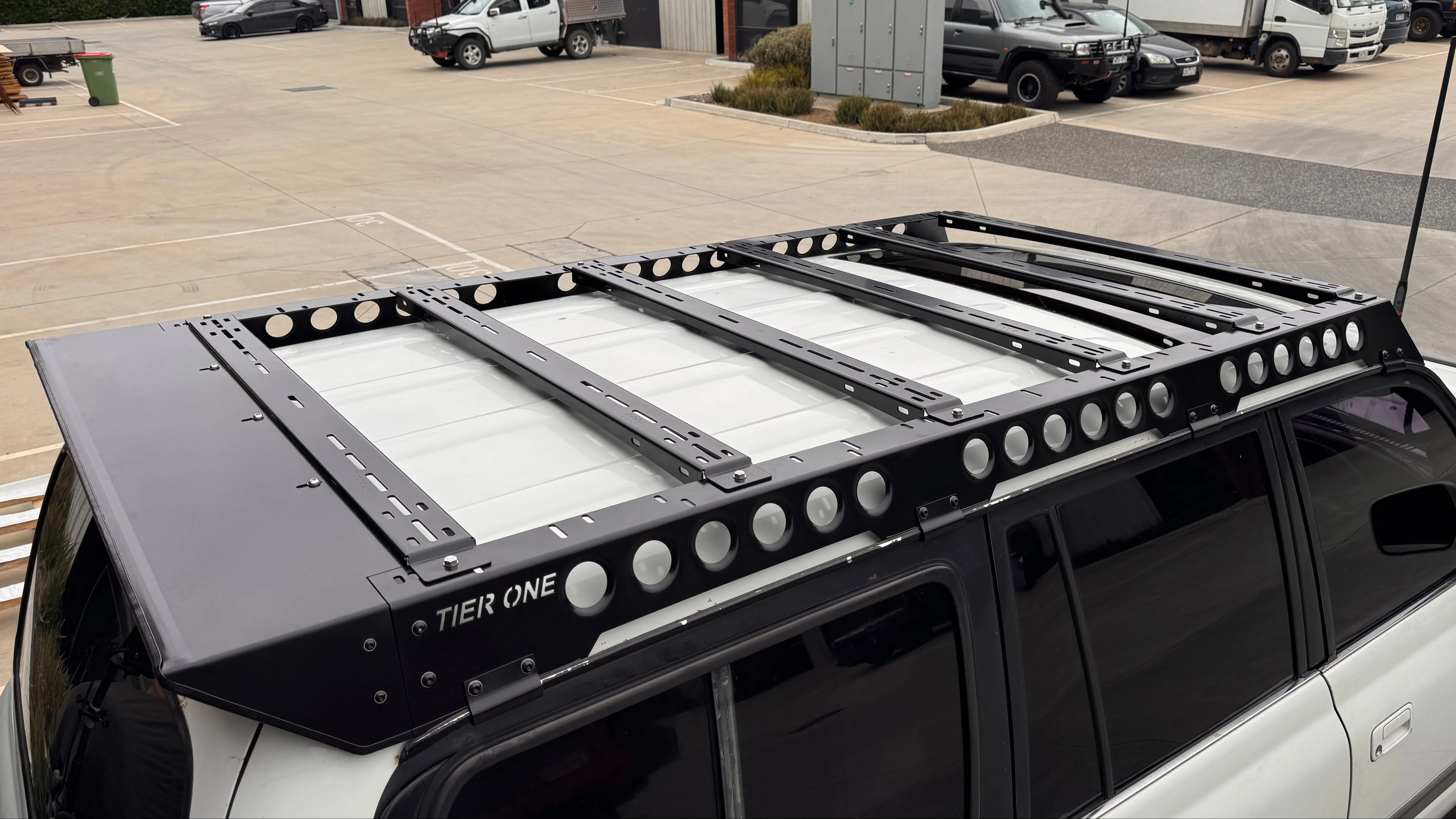

• Wagon: 6 bars

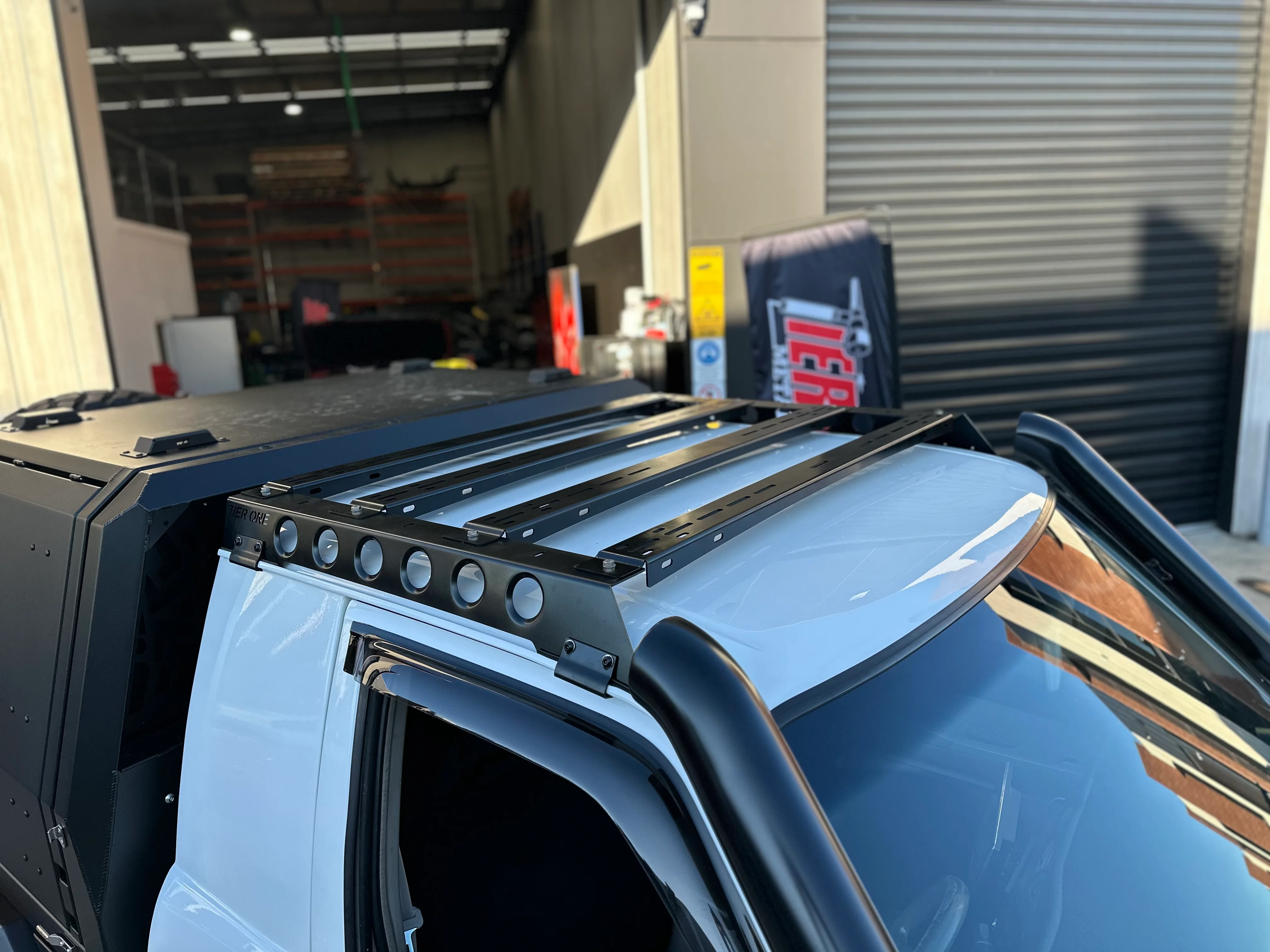

• Ute: 3 bars
• Rooftop Tent: 6 bars recommended

Specifications

• Weight: 3.4 kg per bar
• Material: 304 stainless steel
• Finish: Powder coated satin black
• Width: 80 mm
• Height: 25mm (Curves)
• Roof clearance: 15mm (At closest point)
• Material thickness: 3mm

Variant Sizes

GU-GQ-76-78

·         1120mm internal / 1220mm External (end tab to end tab)

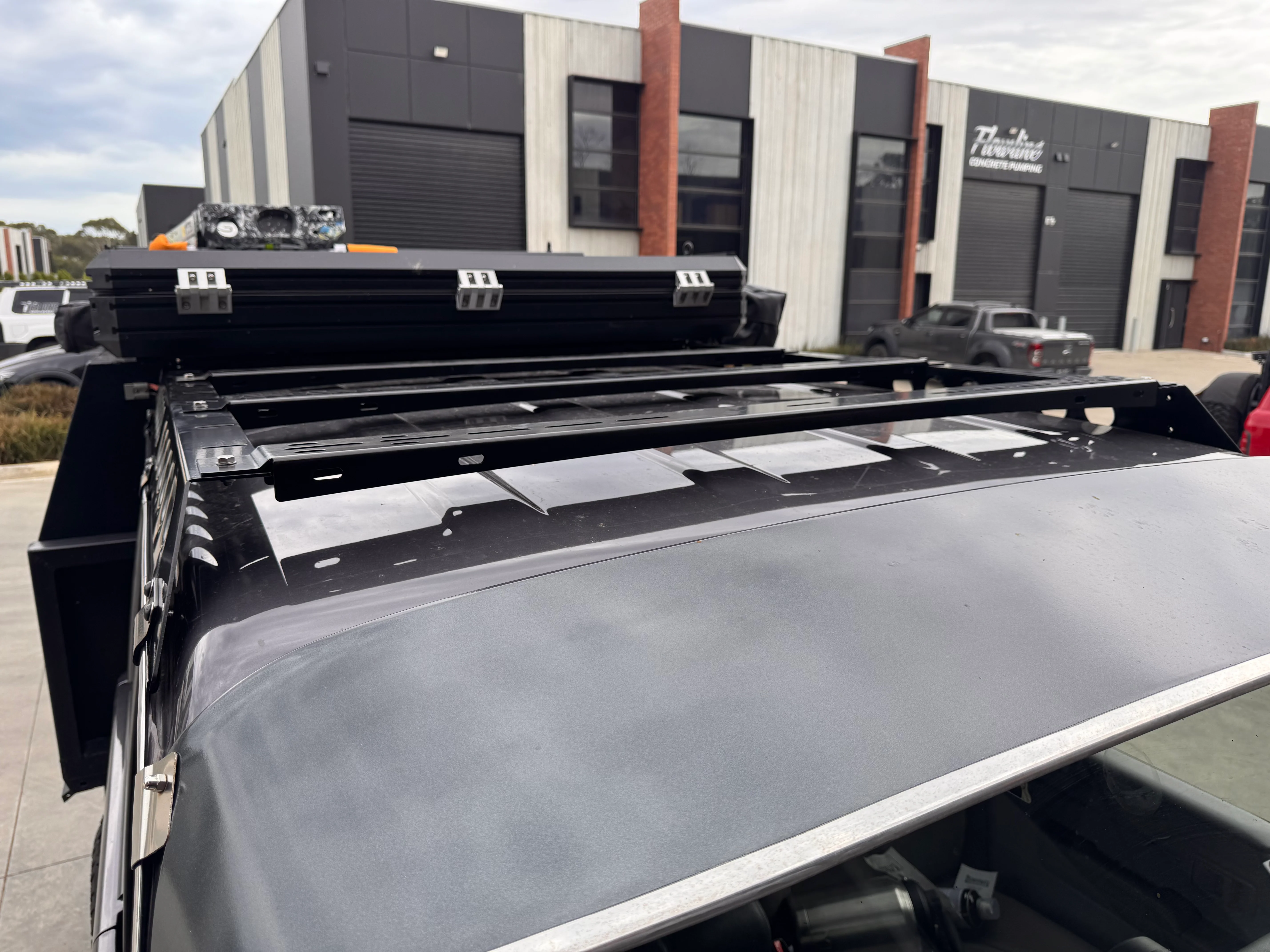

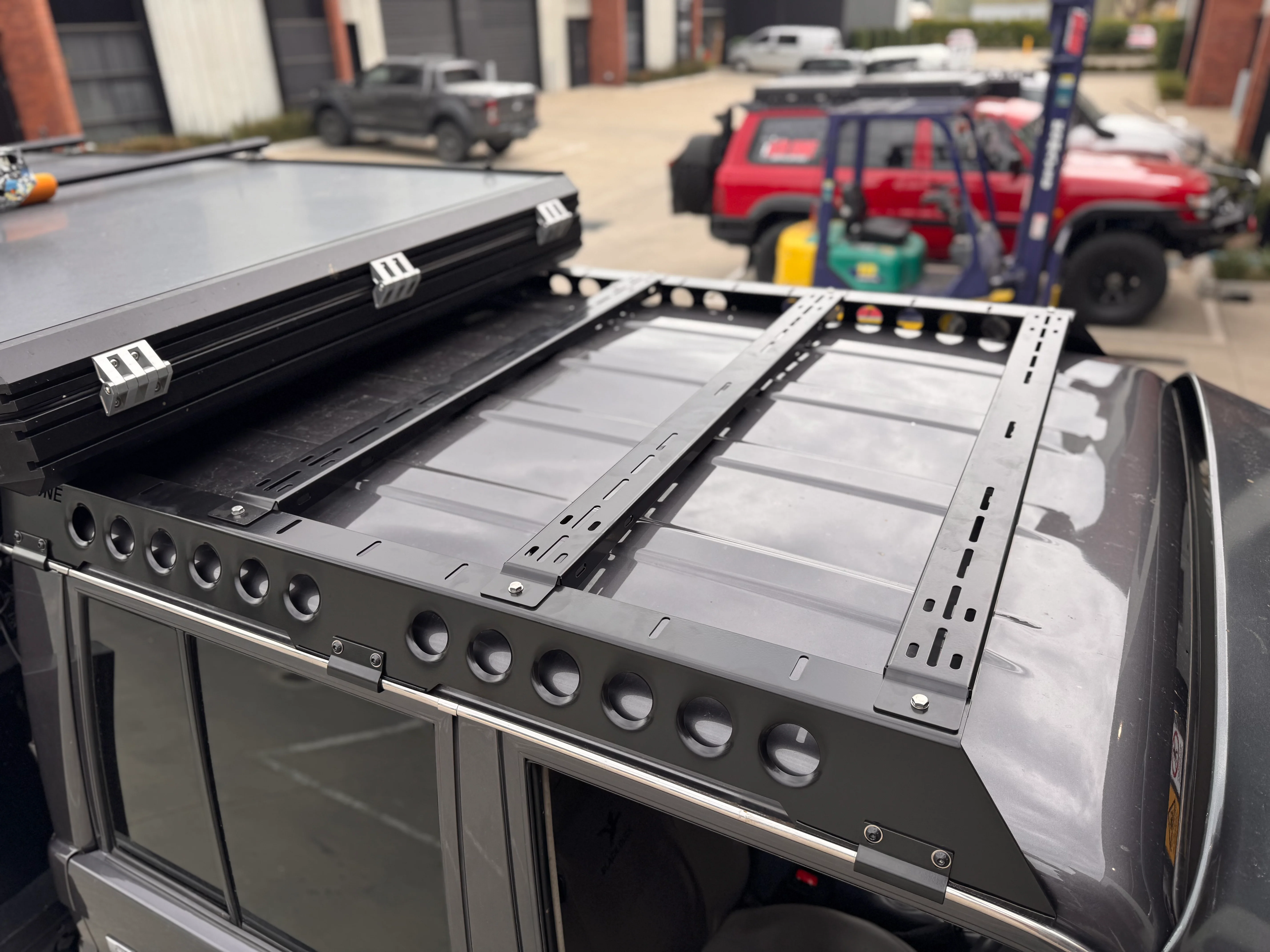

79 Series:

·         1180mm internal / 1280mm External (end tab to end tab)

Prado:

·         (Measurements coming soon)

100/105 Series and 200 Series roof profiles increasing significantly from front to rear, we manufacture three different bar lengths to ensure a precise fit.

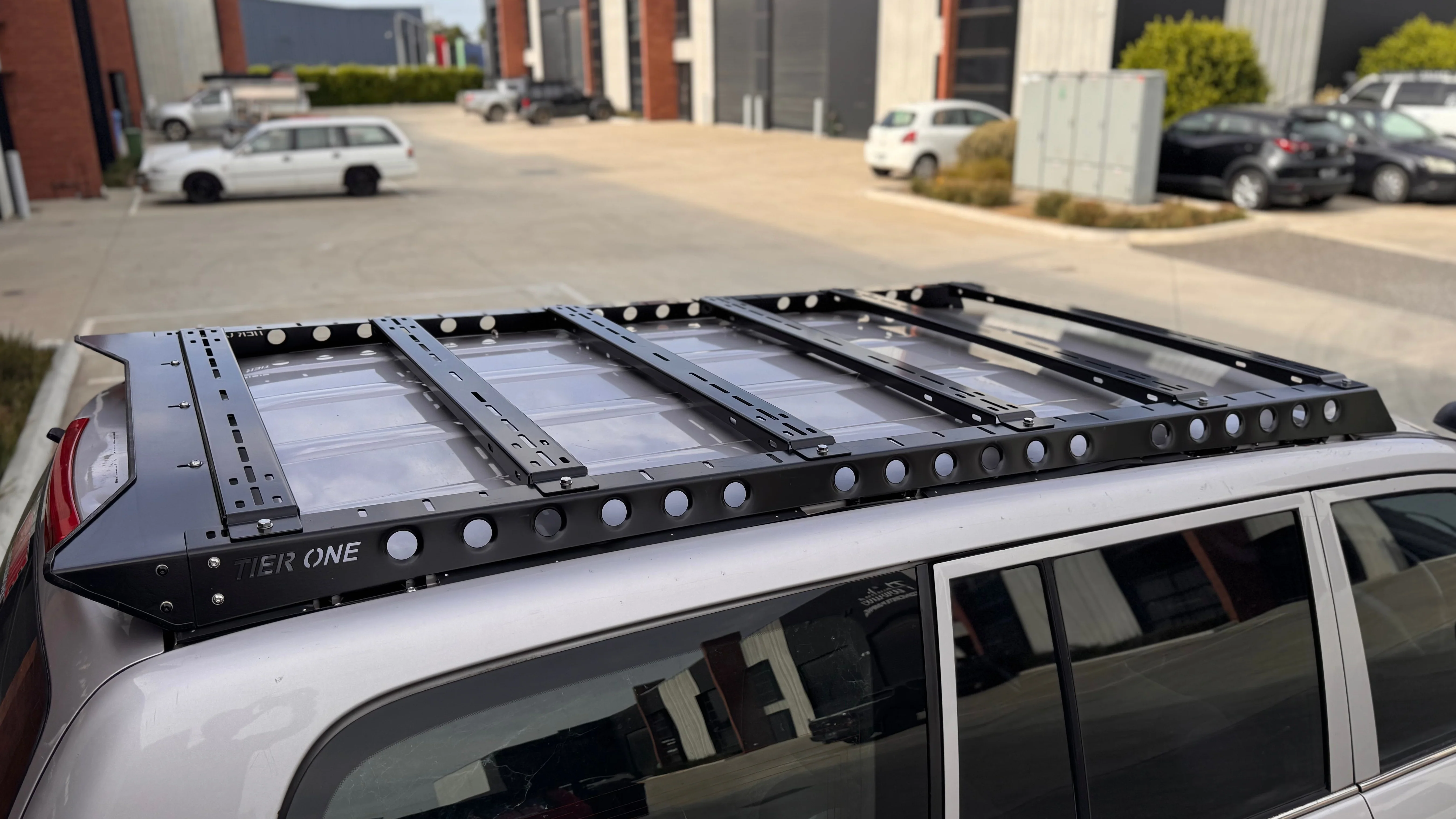

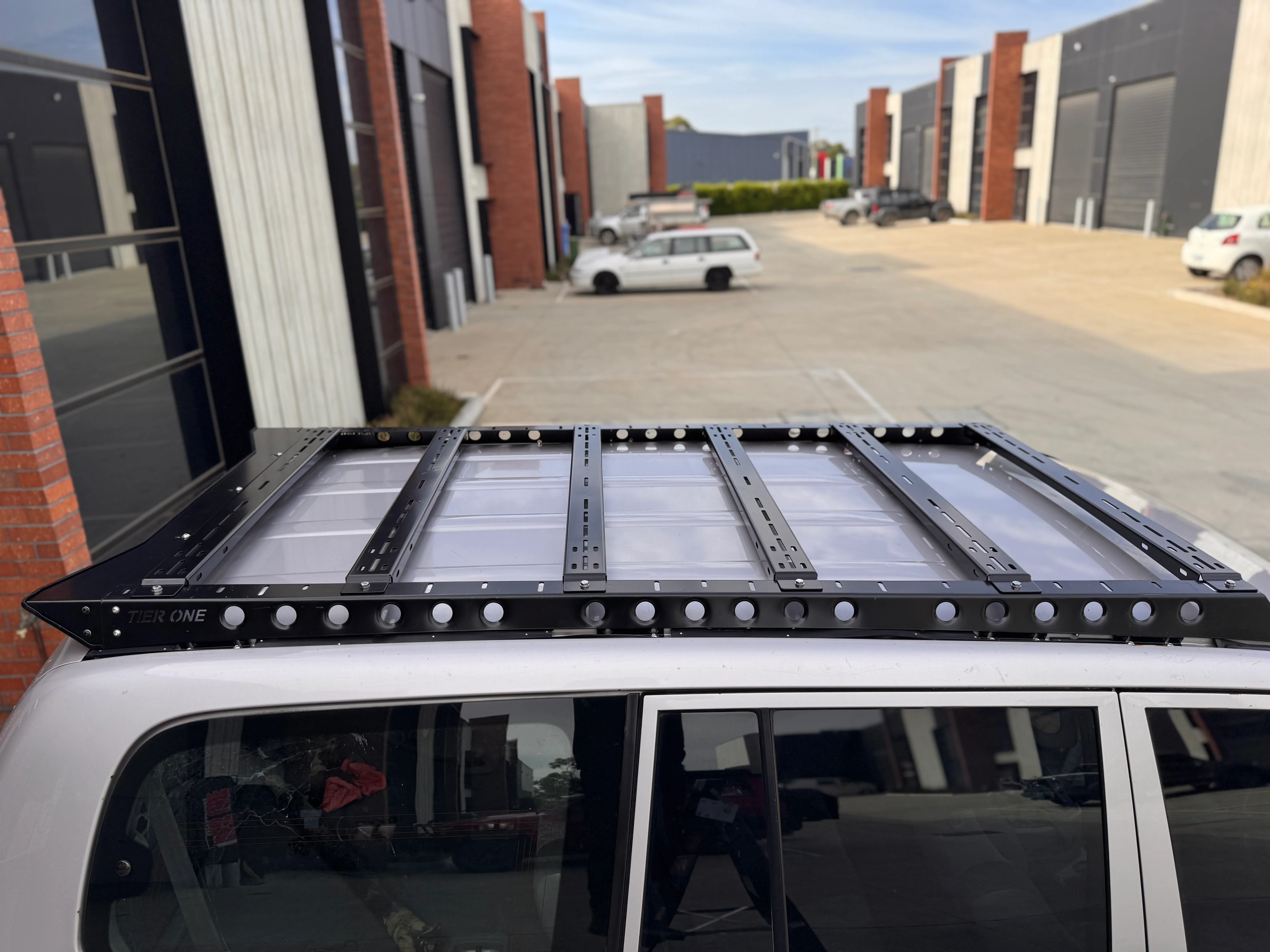

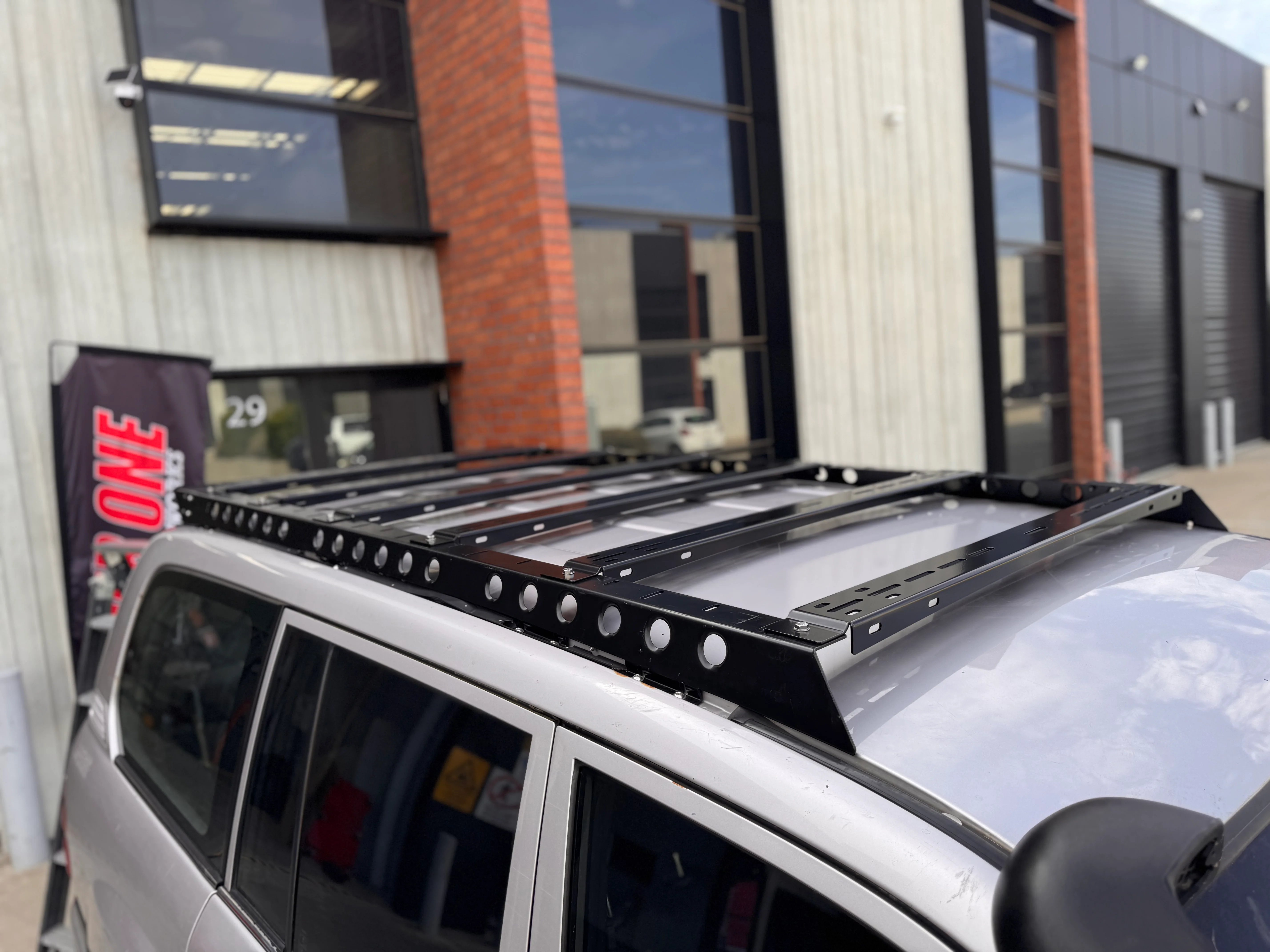

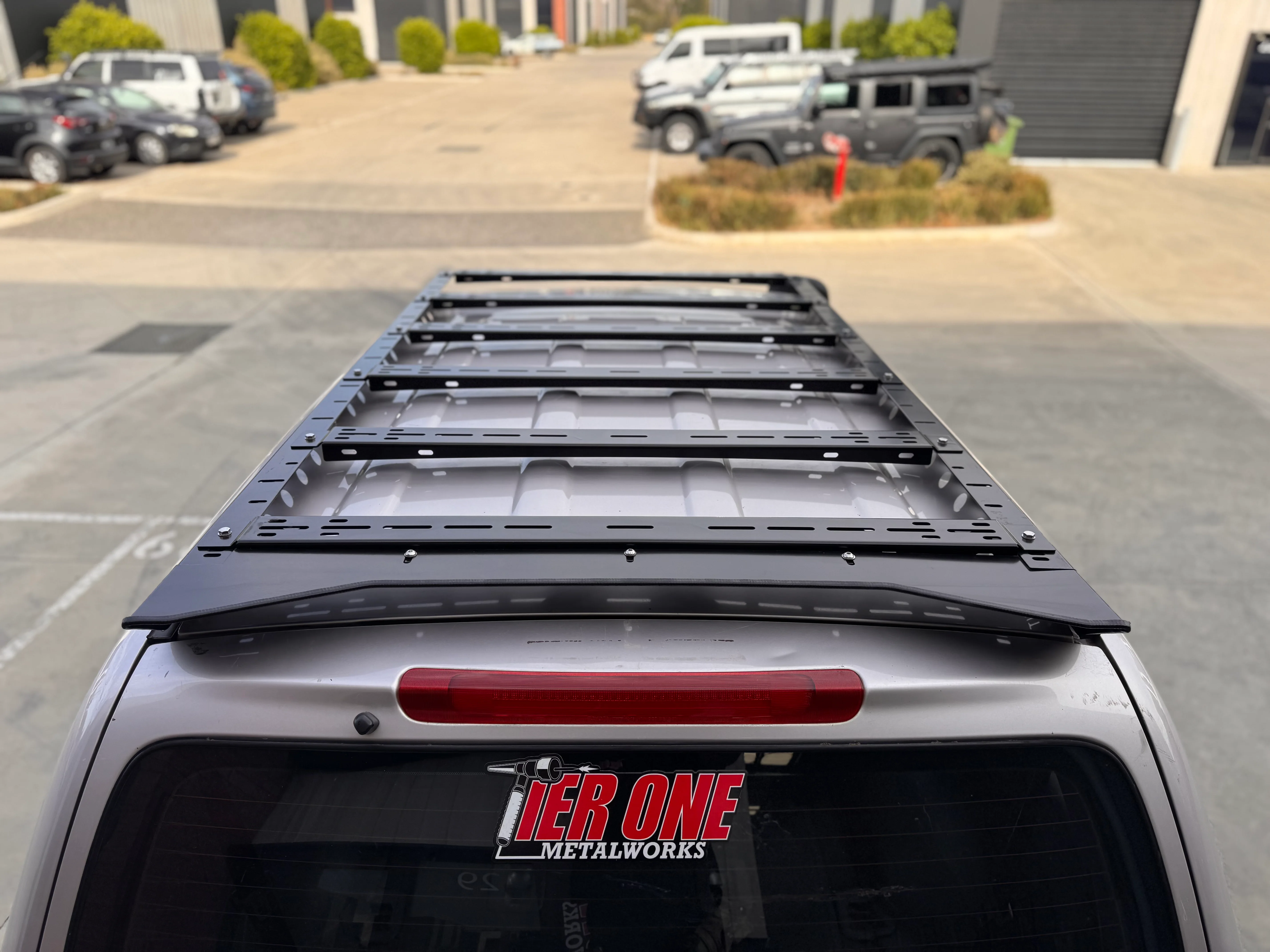

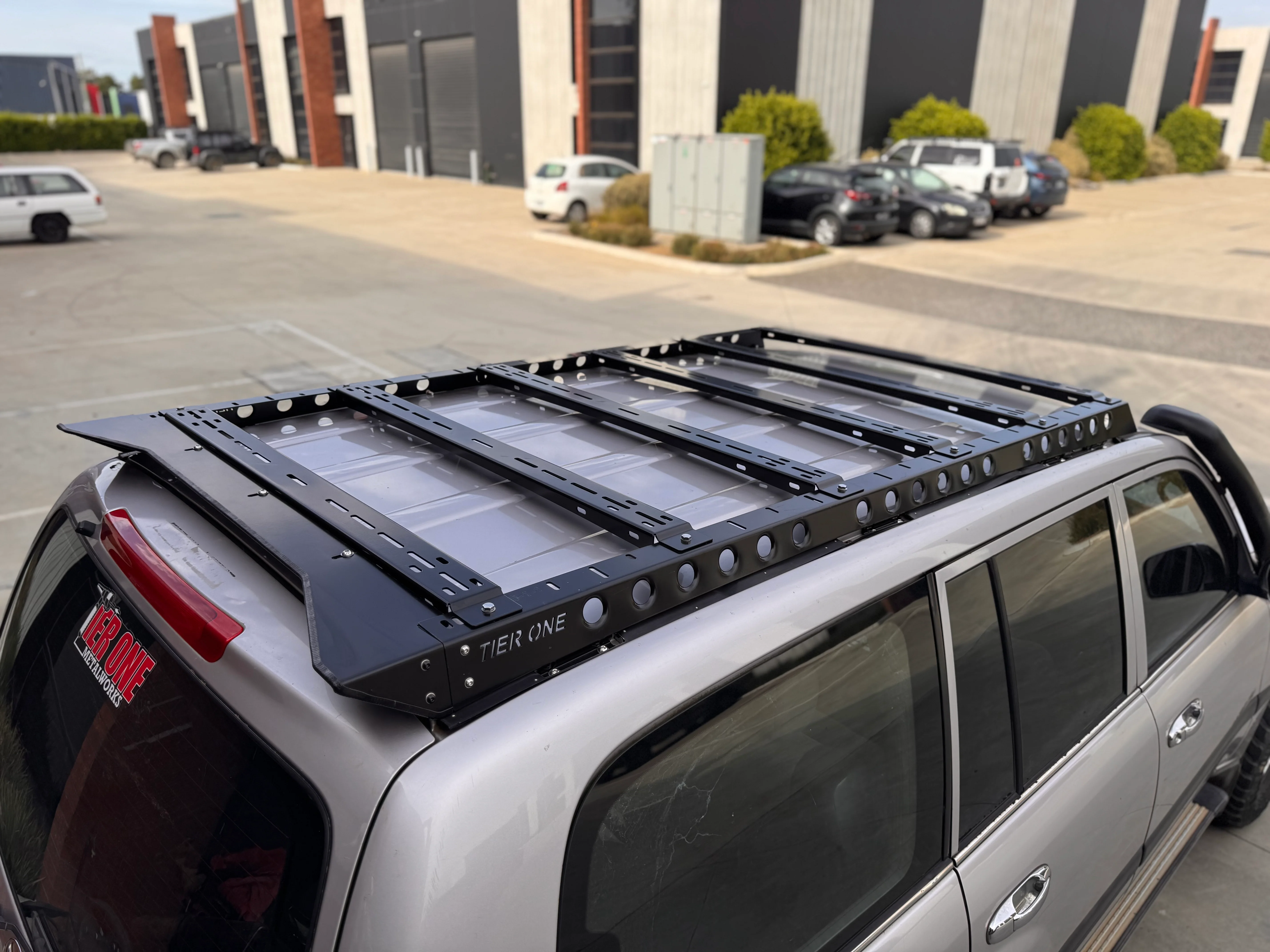

100/105 Series Variants

• Rear: 1015 mm internal / 1115 mm external
• Middle: 1045 mm internal / 1145 mm external
• Front: 1075 mm internal / 1175 mm external

What’s Included

• 6 bars: 1015 × 2, 1045 × 2, 1075 × 2
• 5 bars: 1015 × 2, 1045 × 2, 1075 × 1
• 4 bars: 1015 × 1, 1045 × 2, 1075 × 1
• 2 bars: 1015 × 1, 1075 × 1



200 Series Variants

• Rear: 955 mm internal / 1055 mm external
• Middle: 985 mm internal / 1085 mm external
• Front: 1015 mm internal / 1115 mm external

What’s Included

• 6 bars: 955 × 2, 985 × 2, 1015 × 2
• 5 bars: 955 × 2, 985 × 2, 1015 × 1
• 4 bars: 955 × 1, 985 × 2, 1015 × 1
• 2 bars: 955 × 1, 1015 × 1

Need a custom combination?
Leave a note at checkout or contact us before ordering — we’re happy to help.

Important Notes

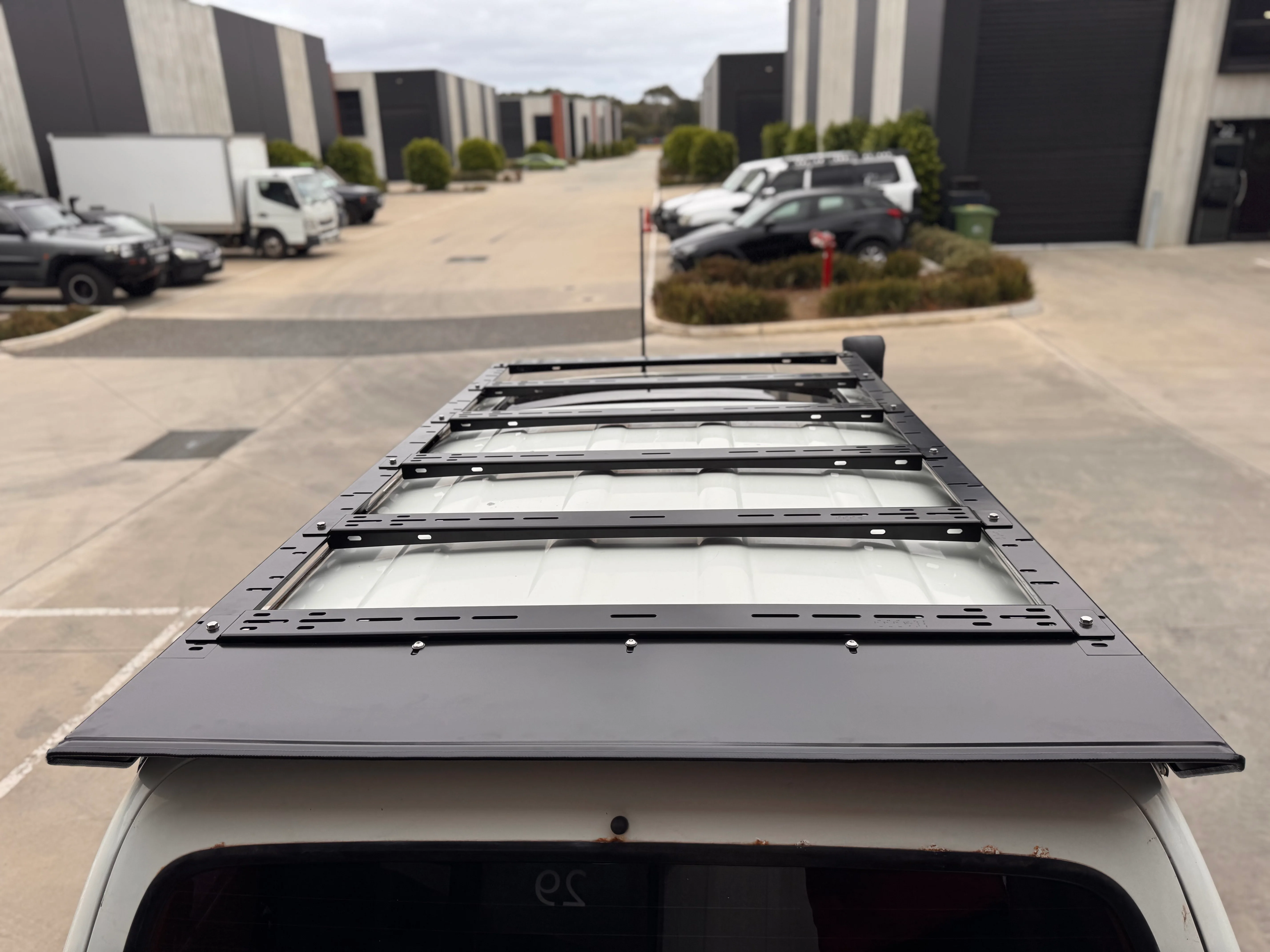

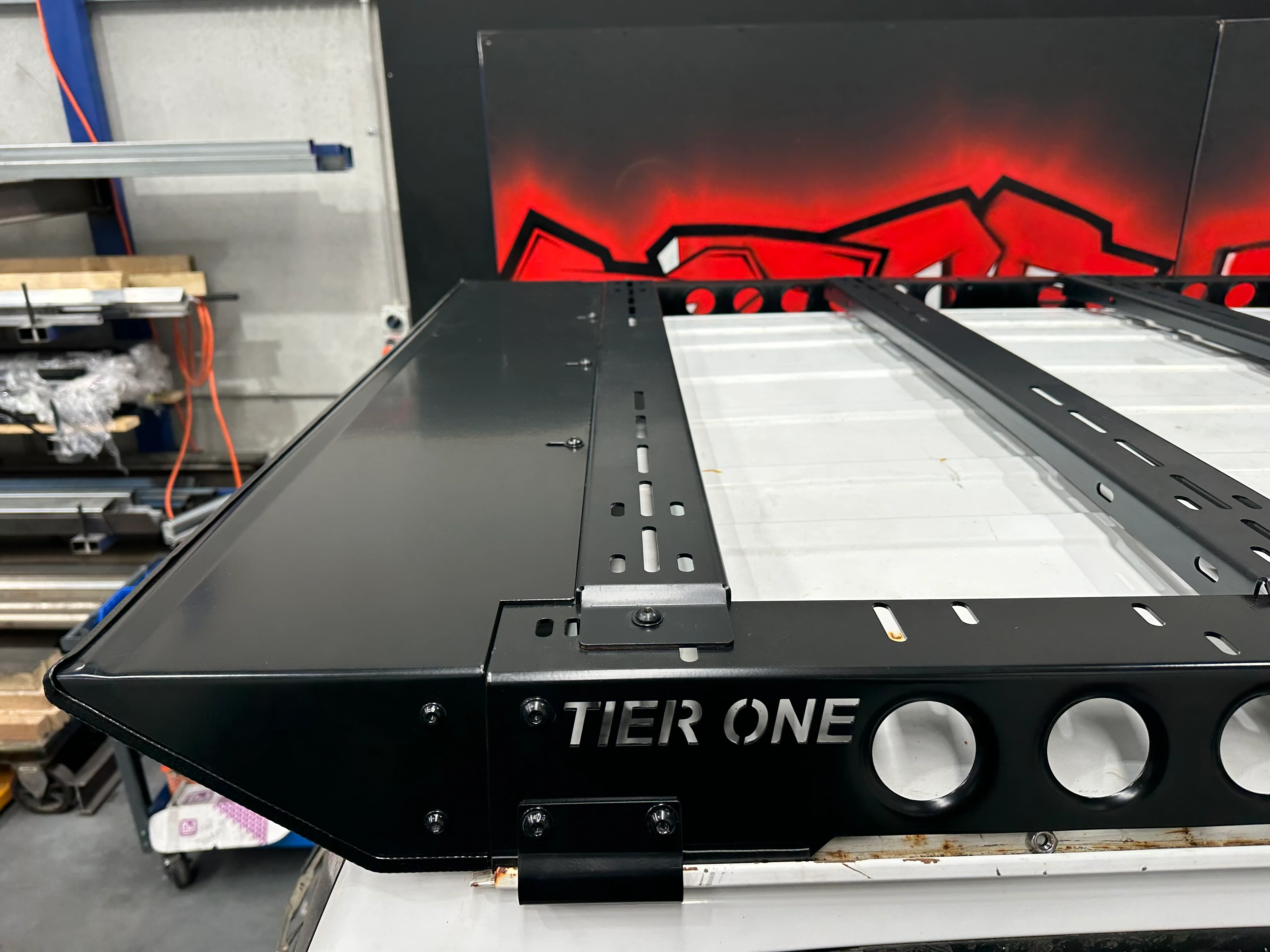

• All cross-bar sets include one rear-tab bar, unless ordering a ute setup
• If you do not plan to run a rear wing, please specify this in your order notes
• Otherwise, a tabbed bar will be included to suit the wing (excluding alloy extrusion setups)
• If the gap on your GQ is very minimal it is likely your roof skin has separated internally from the support beams, if this is so we recommend removing the roof lining and re sticking the roof skin to the support beams.

If you may add a rear wing in the future, we recommend keeping the tabbed bar and mounting it with the tabs facing inward for now.

Why Choose Tier One Cross Bars

• Australian-made and engineered in-house for real-world conditions
• Modular and interchangeable — add, remove, or reposition bars at any time
• Lightweight yet durable, proven under demanding loads
• Accessory-ready, with a growing range of modular bolt-on add-ons in development

Whether you’re mounting a rooftop tent, loading up for work, or heading off-road, Tier One Metalworks Cross Bars deliver a slim, strong, and practical solution for any setup.
